CO. электроники Шэньчжэня Shichuangxinke, Ltd
профессионал делает хорошее качество, обеспечивает совершенный продукт и обслуживание для каждого клиента.

|
| Place of Origin: | China |
| Фирменное наименование: | SCXK |
| Сертификация: | CE ,rohs ,FCC ,UL |
| Model Number: | SCXK-STP10 |
| Minimum Order Quantity: | 20sqm |
|---|---|
| Цена: | negotation |
| Packaging Details: | wooden box, flight case, |
| Delivery Time: | 6-8 days after your payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000sqm/month |
| Material: | iron and steel | warranty: | 3 years |
|---|---|---|---|
| led chip: | epistar | usage: | stadium outdoor usage |
| IP: | IP65 | color: | full color |
| module size: | 320x160mm | brightness: | 7500cd/sqm |
| Use: | advertising publish, shopping mall, welcome display, Restaurant & Hotel Supplies |
3000Hz 1R1G1B 320x160mm P10 Full Color Led Module Sealed Iron Cabinet
Application:

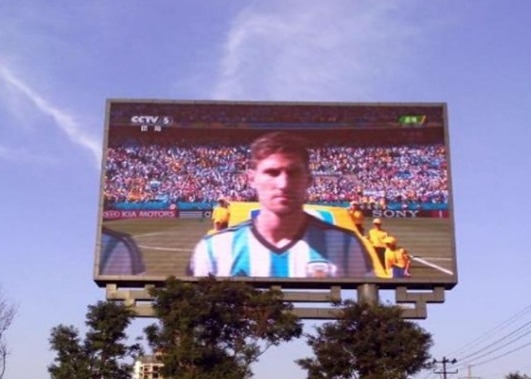

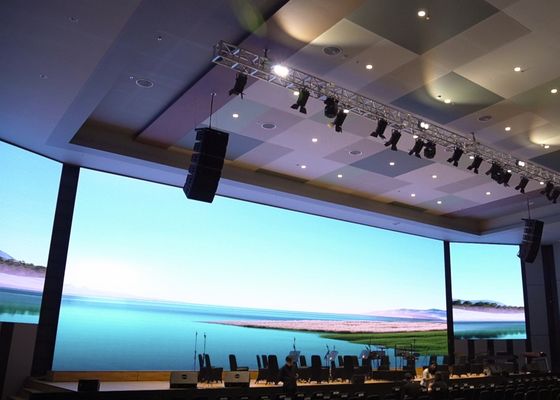

Outdoor full-color LED display can be used in outdoor environments such as airports, highways, cultural and leisure plazas, commercial pedestrian streets, residential communities, downtown areas and other outdoor environments, with a variety of real-time signal sources and waterproof, dustproof, anti-static features, and its use is to publicize outdoor advertisements or broadcasting important news, events or TV programs.
Our led display feature as follows.

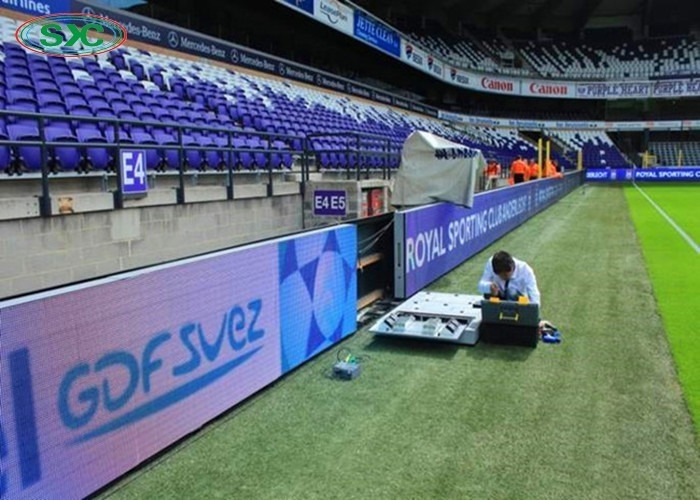

1). Wide application field : Outdoor Commercial advertising LED display screen, LED display board for shopping mall,Stadium perimeter LED display ,bank&stock exchange LED display screen for rates showing,train & bus station LED display screen .
2). High brightness:7000cd/m2 Automatic or manual adjustment of the brightness of the display.
3).Top LED chip: Supplied by Silan of china & other high strictly selected LED chip to ensure the long lifetime and high brightness of our LED display system.
4). Clear vivid image quality: Throughout the show, the picture clear, bright color.
5).Installation is simple,easy to use: Easy and simple installation interface and user friendly software to ensure that customers use easily.
The parameter as follows:
| The outdoor full color outdoor P10 stadium led display | |||||||||
| LED Lamps | Type | SMD3535(High Brightness LEDs) | |||||||
| LED Standard | Real Pixel(1R1G1B) | ||||||||
| Red Wavelength | 625-630nm | ||||||||
| Green Wavelength | 515-530nm | ||||||||
| Blue Wavelength | 465-475nm | ||||||||
| LED Module | Pixel Pitch | 10mm | |||||||
| Module Size | 320mmx160mm | ||||||||
| Module Resolution | 32*16dots | ||||||||
| LED Cabinet | Cabinet Size | 960mmX960mm | |||||||
| Cabinet Resolution | 96pixels *96pixels | ||||||||
| Cabinets Material | Sealed Iron Cabinet | ||||||||
| led screen | Pixel Density | 10000dots/sqm | |||||||
| Drive IC | MBI5024 | ||||||||
| Power Supply | Series connection | ||||||||
| Brightness | >8500cd/sqm | ||||||||
| Display Color | 16.7million | ||||||||
| Viewing Angle | 160°(Horizontal),110°(Vertical) | ||||||||
| Best Viewing Distance | 10m~200m | ||||||||
| Max Power Consumption | 600 w/sq.m | ||||||||
| Average Power Consumption | 300 w/sq.m | ||||||||
| Weight | 45/sq.m | ||||||||
| Refresh Rate | 3000hz | ||||||||
| Input Voltage | AC220V/50H or AC110V/60H | ||||||||
| Output Voltage | DC5V,40A | ||||||||
| Grey Scale Levels | 16bit | ||||||||
| Display Colors | R(1024) x G(1024) x B(1024) | ||||||||
| MTBF | 10,000 hours | ||||||||
Features:
1.High and adjustable LED brightness can meet the demands of the changing requirement of customer in different environments.
2. No mosaic display due to excellent flatness and nice uniformity of light-emitting
3.Wide viewing angle and the horizontal angle can reach 120°m. The images display effect will not Change largely in the range.
4. Virtual pixel display screen can be adopted for outdoor displays to increase the resolution up to four times of real pixel, making the images softer and vivider
5. LED Single-lamp maintenance with low cost.
6. Good heat dissipation capability because of the unique design of vent fan.
7. Environmental-friendly and energy-saving.
