| Место происхождения: | Шэньчжэнь в Китае |
| Фирменное наименование: | SCXK |
| Сертификация: | CE/ROHS/FCC/ISO/UL |
| Номер модели: | P3.91 |
| Количество мин заказа: | 2sqm |
|---|---|
| Цена: | лично переговорить |
| Упаковывая детали: | Корпус полета, деревянный чехол, коробка, это зависит от вас. |
| Время доставки: | 7-10 рабочих дней после получения оплаты |
| Условия оплаты: | Western Union, Moneygram, D/P, T/T, L/C |
| Поставка способности: | 5000 кв.м в месяц |
| Пиксельный шаг: | 3,91 мм | Tube Chip Color: | Полный цвет |
|---|---|---|---|
| Водонепроницаемый: | IP65 | конфигурация пикселя: | 1r1g1b |
| точечная плотность: | 43222dots/sqm | Режим вождения: | DC5V |
| Оптимальное расстояние просмотра: | > = 4 м | Угол просмотра: | H: 160 V: 140 |
| Выделить: | waterproof LED dance floor,P3.91 LED rental screen,indoor outdoor party LED floor |
||

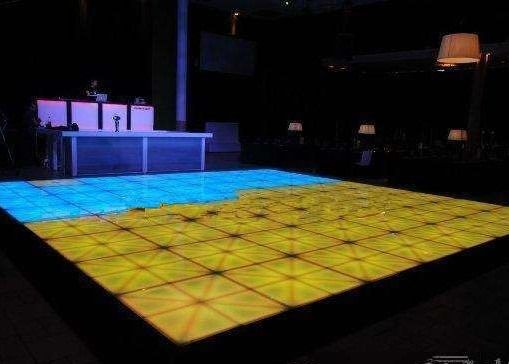

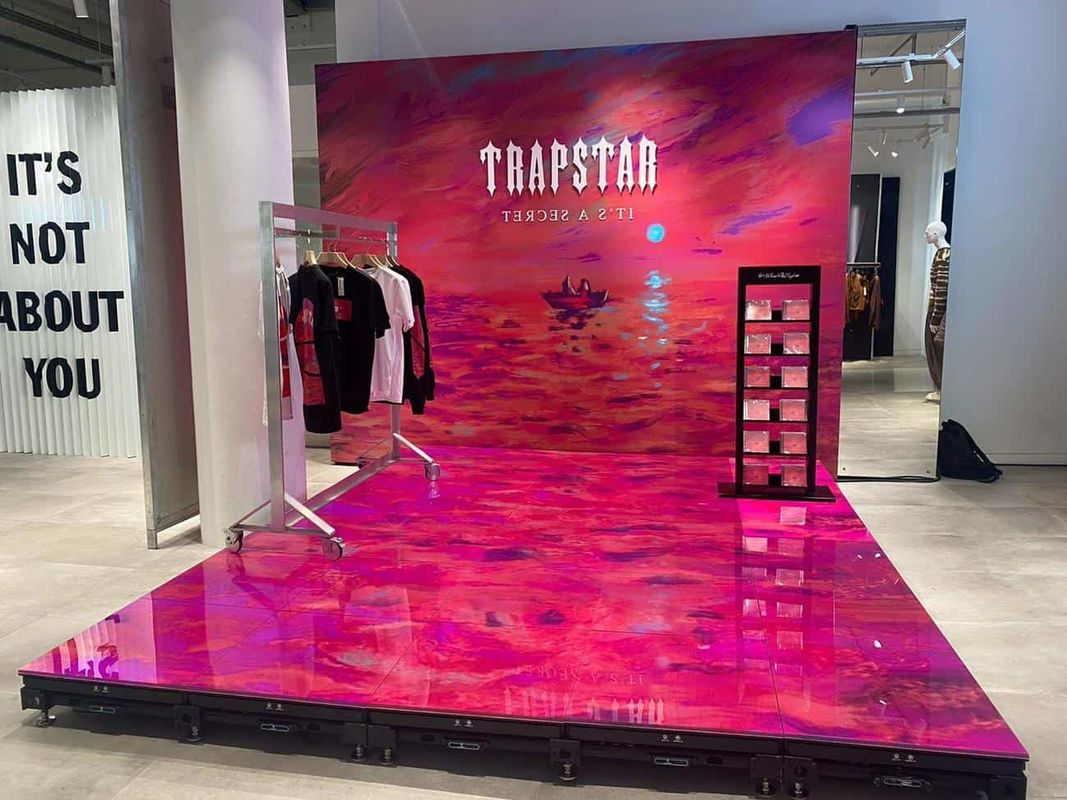

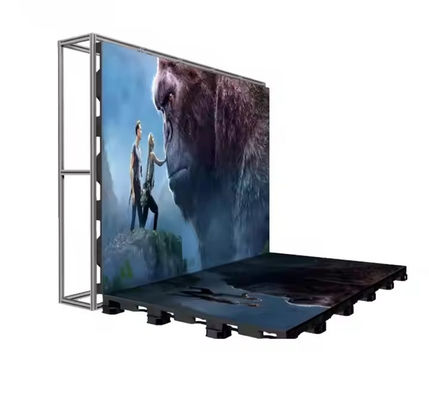

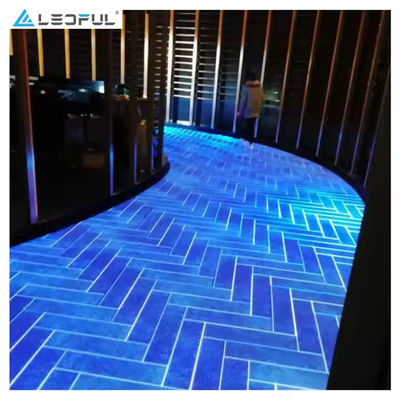

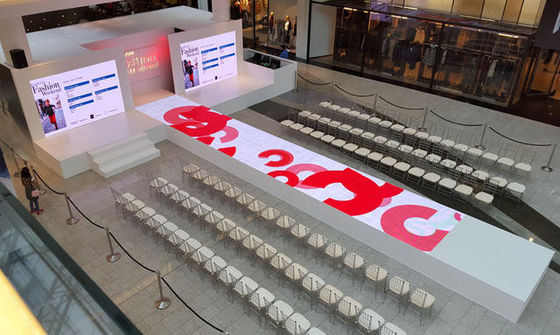

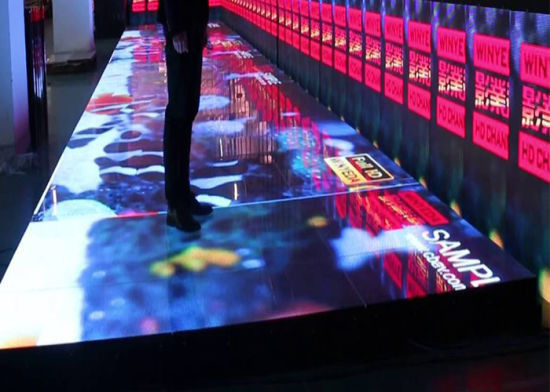

DC5V Waterproof Indoor Outdoor P4.81 Night Club Wedding Party LED Dance Floor Rental Screen
Graphics, animations, pictures, text, videos
More than 13 bit gray level processing and 3500 CD/m² brightness make pictures more realistic and clearer. Mainly used in indoor and outdoor applications, government buildings, halls, enterprise plazas, showrooms, stages, and party scenes. It can be made into different shapes such as ceilings, T-stages, arcs and stair shapes, suitable for both fixed installation and rental use.
| LED Specifications | ||
|---|---|---|
| 1 | Type | SMD |
| 2 | LED Standard | Real Pixel(1R1G1B) |
| 3 | Red Wavelength | 625-630nm |
| 4 | Green Wavelength | 515-530nm |
| 5 | Blue Wavelength | 465-475nm |
| Module Specifications | ||
|---|---|---|
| 1 | Pixel Pitch | 3.91mm |
| 2 | Resolution | 64x64 dots |
| 3 | Module size | 250x250mm |
| Cabinet Specifications | ||
|---|---|---|
| 1 | Cabinet Size(W*H) | 500x1000mm |
| 2 | Cabinet Resolution | 128x256 dots |
| 3 | Pixel Density | 65410 dots/㎡ |
| 4 | Cabinet Weight | ≤6.5kg |
| 5 | Material | Die casting aluminum |
| 6 | Flatness of cabinet | ≤0.3mm |
| Screen Parameters | ||
|---|---|---|
| 1 | Color/Brightness Calibration | Yes |
| 2 | Color Temperature(K) | 3000-10000 |
| 3 | Light Centre Distance Deviation | <3% |
| 4 | Brightness Uniformity | ≥97% |
| 5 | Color Uniformity | Within ±0.003C×,Cy |
| 6 | Contrast Ratio | 5000:1 |
| 7 | View Angle | Horizontal160°/ Vertical 140° |
| 8 | Input Voltage | AC100~240V(50-60Hz) |
| 9 | Power Consumption | Max:800w/㎡ Avg:280w/㎡ |
| 10 | Driving Method | 16 scanning |
| 11 | Protection Level | IP65 waterproof |
| 12 | Grey Scale Levels | R(256) G(256) B(256) |
| 13 | Life Span | 100,000 Hrs |
| 14 | Temperature-Operating | -20 -- 40℃ |
| 15 | Humidity-Operating | 10 - 99% |
| 16 | Features | Anti-slip, anti-collision, big load-bearing capacity |
| 17 | Usage | LED floors, LED wall background |
| 18 | Display function | Txt, picture, video |
Wooden case or flight case package are available. Shipping by sea, air or DHL, multiple shipping ways for your choice.
Aging: 100% fully test, 72 hours with 256 grey level
Vibration Testing: 3-5 mins up and down in 5mm range
Continues Quality: With more than 12 years experience in LED display production, regularly updated equipment and unique standardized module production ensure continuous quality.
Competitive Price: Large scale production capacity and professional technology allow us to reduce costs while maintaining quality.
Fast Delivery: We maintain strict adherence to promised delivery dates using special procedures when needed.
Perfect Service: Comprehensive pre-sales consultation and after-sales support with product usage tracking.
Our team will be forever here to offer you full supports!
