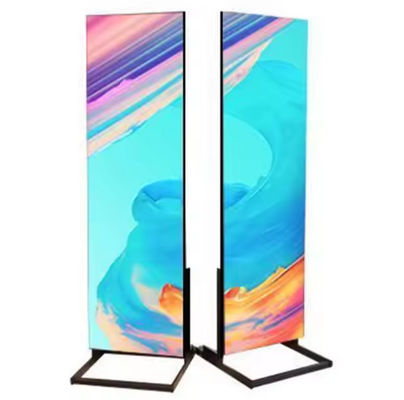

Name: P3 Full Color Video Display Indoor LED Display Stand Poster LED Screen Mirror Portable Screen
Brand: Shenzhen ShiXin Display Technology Co.,Ltd
SKU: P3
Price: 10,429.00 USD
Availability: InStock

Главная страница Продукция Дисплей плаката СИД

P3 Full Color Video Display Indoor LED Display Stand Poster LED Screen Mirror Portable Screen

Подробная информация о продукте:

Место происхождения:	Шэньчжэнь в Китае
Фирменное наименование:	SCXK
Сертификация:	CE/ROHS/FCC/ISO/CB/UL
Номер модели:	P3

Оплата и доставка Условия:

Количество мин заказа:	sqm 3
Цена:	лично переговорить
Упаковывая детали:	Корпус полета, деревянный чехол, коробка, это зависит от вас.
Время доставки:	7-10 рабочих дней после получения оплаты
Условия оплаты:	T/T, Western Union, Moneygram
Поставка способности:	5000 кв.м в месяц

контакт

Подробное описание продукта

Пиксельный шаг:	3 мм	Tube Chip Color:	Полный цвет
Светодиодный тип:	SMD 2121	Отображать функцию:	Видео/Текст/Изображение
Водонепроницаемый:	IP43	Шкаф:	Уметь алюминий
Угол просмотра:	H: 160 V: 140	Оптимальное расстояние просмотра:	> = 3 м
Напряжение:	DC5V	Яркость:	1000 кд/м²
Светодиодный параметр:	R: 625-630NM
Выделить:	indoor LED display stand , portable LED screen mirror , full color video display poster

P3 Full Color Video Display Indoor LED Display Stand Poster LED Screen Mirror Portable Screen

P3 Full Color Video display indoor LED Display Stand Poster LED Screen Mirror Portable screen

Features

Supports Ethernet, SD card, Wifi, HDMI input and 3G remote control input.
Works perfectly both on-line and off-line.
Does not require configuration after power on.
Stand alone with in-built support frame. Wall mount brackets are optional.
High brightness, high contrast and high grey scale.

Product Specification

Parameter	Value
Indoor SMD	P3
Lamp size	2121
Resolution/mm	3
Pixel configuration	RGB 3 in 1
Pixel density/pixels/m²	111111/m²
Module resolution	64x64
Module size/mm	192*192
View distance	≥0.5m
Single point brightness adjust	Can be added
Single point color adjust	Can be added
White balance brightness	>2500cd/㎡
Color temperature	6500K-9500K
Horizontal view angle	120(degrees)
Vertical view angle	60(degrees)
Signal Process bit	10 or 14 bit
Grey process	1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances	Internet cable:100m, multimembrane:500m, monofilm:5km
Driving mode	Constant driving current
Scanning mode	1/16
Frame rate	60Hz
Refresh frequency	>4200Hz
Control mode	Computer synchronous
Brightness adjusted range	Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss
Out of control point	<1/10000
Working hours	≥72hours
Mean Time Between Failure	>5000hours
Life time	100000hours
Life-all-white(brightness halving)	50000hours
Environment temperature range	Operating temperature range: -20-45℃ Storing temperature range: -30-65℃
Maximum power:/㎡	<1000W
Average power:/㎡	<280W
Self-check technology	LED spot self-check, communications check, power check, temperature monitor(need customization)
Remote monitoring	Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization)
Software environment	WindowsNT,Windows1999,WindowsXP
Luminous point width between centres	Deviation<3%
Brightness uniformity	<10%
Color uniformity(chromaticity coordinate)	±0.003
Power supply request	AC85-264V(50Hz-60Hz)
Contrast	(1000:1)
System protection	Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working)	working:10-95%
Humidity(storing)	storing:10-95%

Product Overviews

Items	Details
Indoor Led display	p1.5, P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P7.62, P10
Outdoor Led display	P4, P4.81, P5, P6, P8, P10, P12, P16,P20,P25,P31.25
Material	steel,aluminum ,die casting aluminum
Payment terms	30% deposit before production, 70% balance before shipping T/T Western Union
Packing	Standard Export Carton with fully Polyfoam or Pearl Wool Flight case; Anti-shaking wooden case
Shipping	5 to 7 working days upon receiving deposit payment
After-Sales-Service	Lifetime with professional engineer support for free. Within 5 year, supply spare parts for free if has quality problem (not by man-made damage)
Using Range	Shopping mall,bank,bus station, train station, center of downtown, airport, school, factory, bus, taxi,and so on.

Production Process

Incoming Inspection
SMD
Plug-in
Wave Soldering
After Welding
Testing
Semi Finished Aging
Module Assembly
Gluing
Finished Aging
Detection Finishing Warehousing

Our Advantages

Professional Manufacturer of led display
OEM service, No MOQ
Easy installation, regular items in Stocks
Offering free design drawing as requested.
Remote controlling and adjusting are available.
Wooden case or flight case, you are the boss.
Your reply will be replied within 24 hours.
Fast delivery: Usually 6-8 working days
Excellent R&D team, factory price and assure you quality goods.

Packaging and Shipping

Wooden case or flight case package are available.

Shipping by sea, air or DHL, multiple shipping ways for your choice.

Methods for Quality Assurance

a. Aging

100% fully test
Condition: 72 hours with 256 grey level

b. Vibration Testing

Condition: 3-5 mins up and down in 5mm range

Why Choose us:

Continues Quality

With more than 12 years experience in led display producing, equipments are updated regularly. What's more, unique standardized and module production ensure our products continuous quality.

Competitive Price

With large scale production capacity and professional production technology, our company have built effective modular production. We always stick to promote the technical innovation and reduce cost to benefit customers.

Fast Delivery

Once we promise the delivery date, we will try our best to fulfill it. Special procedures such as emergency inventory will be used to maintain your uninterrupted supply of the products.

Perfect Service

Pre-sales: Your purchasing requirements will be highly valued and we'll recommend suitable products to you.

After-sales: We will track the products usage and then constantly perfect our products.

Our team will be forever here to offer you full supports !!!
