CO. электроники Шэньчжэня Shichuangxinke, Ltd
профессионал делает хорошее качество, обеспечивает совершенный продукт и обслуживание для каждого клиента.
 |
| Place of Origin: | China ,Guang Dong |
| Фирменное наименование: | Shichuangxinke |
| Сертификация: | CE RoHS FCC CCC TUV UL |
| Model Number: | SCXK-P4.81 |
| Minimum Order Quantity: | 1 square meters |
|---|---|
| Цена: | USD1200-1400per square meters |
| Packaging Details: | wooden box flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after deposit payment received |
| Условия оплаты: | L/C, T/T, Western Union |
| Поставка способности: | 5000 кв. м в месяц |
| Resolution/mm: | 4.81 | Pixel configuration: | 1R1G1B |
|---|---|---|---|
| Scanning Mode: | 1/13 scanning | Module Size: | 250x250 |
| размер шкафа: | 500х500 мм | certificates: | CE RoHS FCC CCC UL |
| Применение: | Стадион, аэропорт, торговый центр, уличная реклама | material: | aluminum |
| Гарантия: | 3-5 лет |

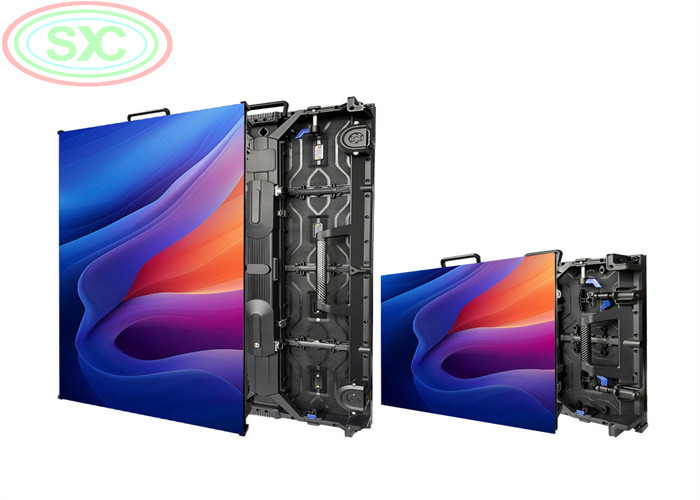

aluminum frame outdoor rental P4.81 LED display screen RGB full color super bright
Features
1. Standard size module size 250mm×250mm, box size 500mm×500mm, compatible with PH3.91/PH4.81/PH5.95 and other standard size box designs with pixel pitch.
2. High-precision die-cast aluminum box, seamless unit box, perfect solution for outdoor use.
3. Lightweight and sturdy box design, quick positioning handle lock, can be quickly and easily assembled in a variety of ways, suitable for various occasions, to meet the needs of different customers for various applications.
4. 140-degree viewing angle, ensures that the screen has a wider viewing area, to meet various rental environments and needs.
5. LED lamp beads and IC are made of high-quality materials, uniform picture, true and natural color, high grayscale, high refresh rate, to ensure amazing shooting effect.
Specifications :
| outdoor SMD P4.81 | |||||
| Resolution/mm | 4.81 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 43222/m² | ||||
| Module resolution |
52X 52 |
||||
| Module size/mm | 250x250mm | ||||
| View distance | 14-300m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >7500cd/㎡ | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/13 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
Service
1) Service principles
Response in time, solve problems as soon as possible and ensure the use.
2) Service period
In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.
3) Service scope
If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare parts such as power and chips etc.
FAQ
Q1: How to help client choose suitable display?
A1:
(1)specific application scenario
(2)viewing distance requirement
(3)display brightness requirement
(4)specific installation environment
(5)budget and cost control
Q2: What about your technical support?
A2: Proffessional engineers are on standby, can offer guidance, on site technical support as required.
Q3: What's the control system?
A3: For synchronization control: Nova, Linsn or Mooncell control system.
For asynchronous control: Onbon or Xixun control system.
Q4: What's the warranty of your LED displays?
A4: We provide 2 years warranty and conditioned lifetime technical support for our LED display products.
Q5: What's your payment method?
A5: Our payment method is T/T 30% as deposit, balancing before delivery.
