CO. электроники Шэньчжэня Shichuangxinke, Ltd
профессионал делает хорошее качество, обеспечивает совершенный продукт и обслуживание для каждого клиента.
 |
| Место происхождения: | Китай ((Континент) |
| Фирменное наименование: | SCX |
| Сертификация: | CE,ISO,FCC,UL |
| Model Number: | SCX-P3 |
| Minimum Order Quantity: | 5sqm |
|---|---|
| Цена: | 500-7000USD/sqm |
| Packaging Details: | Carton,wooden and flight cases. |
| Delivery Time: | 12-15 working days. |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000sqm/month |
| Pixels: | 3mm | Usage: | Indoor |
|---|---|---|---|
| Screen dimension: | Customized | Tube chip color: | Full Color |
| Функция отображения: | Видео | Brightness: | 900nits |
| Warranty: | 2-3 Years | Life span: | 100000hours |
| Scan mode: | 1/32 scan | Cabinet material: | Iron or aluminum |

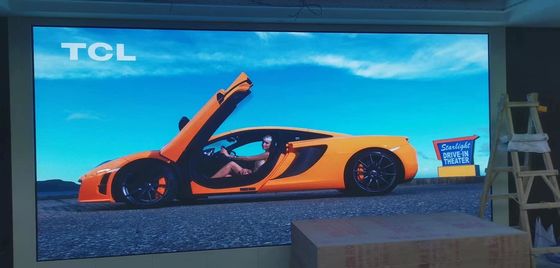

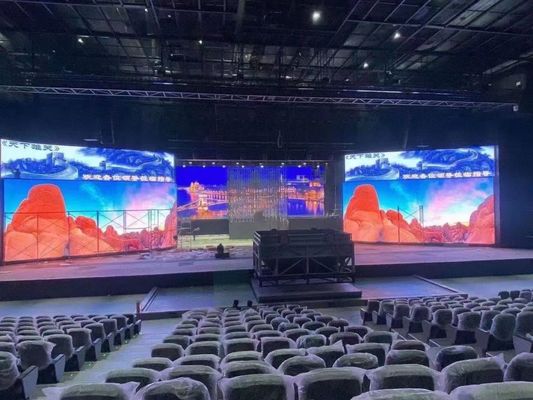

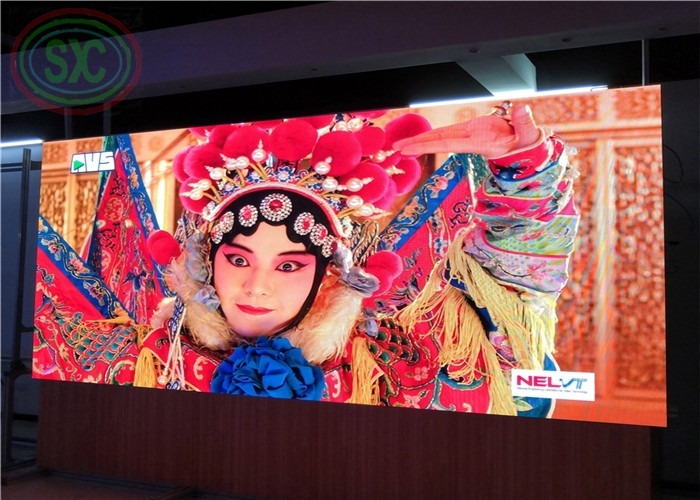

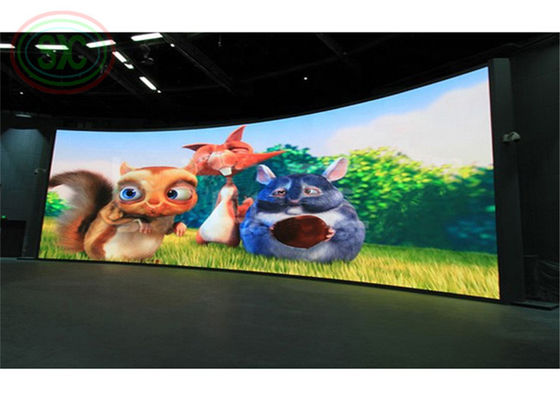

Led Video Display Panel Indoor P3 Movie Screens Large Size Flexible Full Color Screen
Pre-sale service:
1. Reply to inquiries within 24 hours.
2. Provide market research and forecasts for customers.
3. Provide professional solutions according to customer requirements.
4. Provide samples and all documents according to customer requirements.
5. Other services such as factory visits, etc.
After-sale service:
1. Lifetime maintenance and software upgrade.
2. Complaint respond period not exceed 24 hours, maintenance guidance and problem solution supplied in 48 hours.
3. Free technician training.
4. Full set of documents free of charge, which including installation guidance, software operation manual,
easy maintenance manual and control system software CD and so on.
5. Engineer guide installation onsite if needed.
Specifications:
| SMD P3 | |||||
| Resolution/mm | 3 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 111111dots/square meter | ||||
| Module resolution | 64x64mm | ||||
| Module size/mm | 192x192mm | ||||
| View distance | 3-30m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | 900cd/square meter | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/32 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | 3840Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
Main features:
1). Widely used: outdoor commercial advertising LED display, shopping mall LED display, stadium LED display, bank and stock exchange LED display (for displaying prices), railway station and bus station LED display.
2). High brightness: 7000cd/m2 automatic or manual display brightness adjustment.
3). Top-grade LED chips: Adopt strictly selected LED chips from China Silan Microelectronics to ensure long life and high brightness of our LED display system.
4). Clear and realistic image quality: The picture is clear and the colors are bright throughout the display process.
5). Simple installation and easy to use: The installation interface is simple and easy to use, and the software interface is user-friendly to ensure that customers can easily get started.
Our certificates:
FAQ
Q. Can this LED display be installed permanently outside? ---A. A series LED panel is for events use. It has no problem to be used outdoor for events. But if need long time used outdoor, such as install on truck or trailer, it is better to buy fixed LED display.
Q. How long time is needed to produce? ---A. Our production time is 7-15 working days. We have 500sqm indoor P3.91 led display stock now, delivery time is 3 days.
Q. How long does shipping take? ---A. Express and air shipping usually take 5-10 days. Sea shipping takes about 15-55 days according to different country.
Q. What trade terms do you support? ---A. We usually do FOB, CIF, DDU, DDP, EXW terms.
Q. This is the first time to import, I don’t know how to do. ---A. We offer DDP door to door service, you just need to pay us, then wait to receive order.
Q. Do I need to buy other equipment to install LED screen? ---A. You just need to prepare power distribution box, truss and installation tool. We also offer one stop purchase if you want. We can also offer stage lights and speaker.
Q.What is LED screen common size? --A. 16:9 and 4:3 aspect ratio is popular.
Welcome to visit our website and inquire us more info,waiting for you all the time!!!
